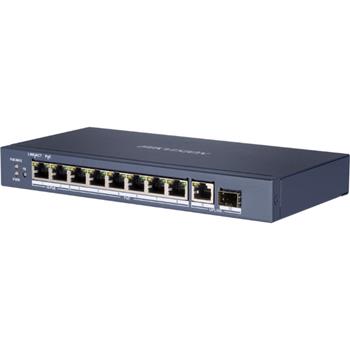

Hikvision full Gb switch 8x PoE (2x HI-PoE), 1x uplink RJ-45 + 1x uplink SFP, 110W, dosah až 300m

Name: Hikvision full Gb switch 8x PoE (2x HI-PoE), 1x uplink RJ-45 + 1x uplink SFP, 110W, dosah až 300m
Brand: Hikvision
Price: 3013.747 Kč
Availability: OutOfStock

2x Gb Hi-PoE port - 90W, 6x Gb PoE port - 30W, 1x Gb uplink port, 1× Gb fiber optical port Super PoE - dosah až 300m na portech 7+8 (10Mbps) Port typ: RJ45 port , full duplex, MDI/MDI-X adaptive Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and...Více info

Kód

PV293408

Part No.

DS-3E0510HP-E

Výrobce

Hikvision

Záruka

24 Měsíce

Porovnat Nastavit hlídacího psa Tisk

Doporučujeme dokoupit

Hikvision SFP modul 1,25 Gbps, Single-mode, Single fiber

Model: HK-SFP-1.25G-20-1550 Data Rate: 1,25 Gbps Interface: LC Transmission Distance: 20 Km Transmission Medium: Single-mode, Single fiber Wavelength: Tx 1550 nm / Rx 1310 nm Sensitivity: ≤ 21 dBm Operating Voltage: 3.3 V Output Power: -9 to -1 dBm ...

Porovnat

Hikvision SFP modul 1,25 Gbps, Single-mode, Single fiber

Model: HK-SFP-1.25G-20-1310 Data Rate: 1,25 Gbps Interface: LC Transmission Distance: 20 Km Transmission Medium: Single-mode, Single fiber Wavelength: Tx 1310 nm / Rx 1550 nm Sensitivity: ≤ 21 dBm Operating Voltage: 3.3 V Output Power: -9 to -1 dBm ...

Porovnat

Základní informace

2x Gb Hi-PoE port - 90W, 6x Gb PoE port - 30W, 1x Gb uplink port, 1× Gb fiber optical port
Super PoE - dosah až 300m na portech 7+8 (10Mbps)
Port typ: RJ45 port , full duplex, MDI/MDI-X adaptive
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab, IEEE 802.3z
Forwarding Mode: Store-and-forward
MAC Address Table: 4K
Switching Capacity: 20 Gbps
Packet forwarding rate: 14,88 Mpps
Internal cache: 1,5 Mbits
PoE Standard: Port 1+2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt / Porty 3 - 8: IEEE 802.3af, IEEE 802.3at
PoE Port: 1-8
Hi-PoE port Port 1+2
Max. port power: Port 1+2: 90W / Porty 3-8: 30W
PoE Power budget: 110W
Napájení: 54V DC, 2,22A, spotreba max. 120W; napájecí zdroj v balení
Pracovní teplota: -10 - +40 °C
Pracovní vlhkost: 5% - 95% , non-condensing
Hmotnost: 0,59kg
Rozmery: 218 x 109 x 28mm
